100kW/215kWh battery storage system main inveter commercial inverter PCS(Power conversion system)-S
100kW/215kWh battery storage system main inveter commercial inverter PCS(Power conversion system)-S

100kW/215kWh battery storage system main inveter commercial inverter PCS(Power conversion system)-S

Product Details:
Place of Origin: China
Brand Name: SinoSoar
Certification: CE,EN50549
Model Number: SP100HC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 5500 USD
Packaging Details: Carton
Delivery Time: 35~45days
Payment Terms: TT
Supply Ability: 1000 pieces/month

Send Inquiry Chat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction
Detailed Product Description

An efficient and highly protective air cooling bidirectional AC DC/DC AC energy storage inverter converter mainly developed for medium to large energy storage microgrids, battery control with bidirectional converter,  battery charging converter,supports parallel operation of multiple machines, hybrid operation of oil engines, and parallel off grid mode.It can be used in a variety of grid-connected and off-grid application scenarios, such as emergency power backup, mobile energy storage, transformer capacity expansion in platform area, peak-load shifting, or dynamic capacity increase, etc. At the same time, it can rapidly expand capacity according to user requirements, and conveniently realize the parallel networking of multiple devices to form a small and medium-sized energy storage system. Can be used independently off-grid, with strong load applicability; the power grid has strong adaptability and excellent usability; Easy integration, single module and a cluster of conventional standard batteries on the market to form a standardized 0.5C energy storage system, to achieve fine management of batteries.Support Energy storage system OEM ODM.

01
Virtual Synchronous Machine (VSG)
02125%Overload capacity
03Seamless switching function
04
Oil engine hybrid mode
05Three phase independent grid connection control technology
06
Microgrid battery structure

Technology Parameters

Type designationSP110HS

DC side

Max. DC voltage 950 V
Min. DC voltage600 V
DC voltage range for nominal power600 ~900V
Max. DC current180A
Max. DC power112kW

AC side (Grid)

AC output power110kVA
Max. AC current160A
Nominal AC voltage (AC voltage range)400 V / 230V (-20%~15%)
Nominal grid frequency / Grid frequency range50Hz / 47Hz~52Hz ， 60Hz / 57Hz~62Hz
Harmonic (THD)< 3 % (at nominal power)
Power factor at nominal power / Adjustable power factor – 1 ~ 1
AC side (micro-grid)
Nominal AC voltage400 V / 230V (-5%~5%)
Harmonic (THD)< 1 % (Resistance load)
Unbalanced three phase load100%
Nominal frequency / Frequency range50Hz / 45Hz~55Hz ， 60Hz / 55Hz~65Hz
AC power110kW(MAX 150kW)
Efficiency
Max. efficiency 98.4%

Protection

Reverse polarity protectionYes
Overvoltage protection ACType II
Grid monitoring / Ground fault monitoringYes / Yes
Insulation monitoringYes
Overheat protectionYes

EMS interface

LED 2
COMModbus RTU*2(Monitor and BAT)
CANCAN*2 (Monitor and BAT)
DIDODO*2,DI*2

General Data

Dimensions (W*H*D) 470*170*770mm
Weight60 kg
Degree of protection IP 65
Operating temperature-30 ~ 60 ˚ C (> 45 ˚ C derating)
Relative humidity 0 ~100 %
CoolingLiquid cooling
Max. operating altitude 4000 m (> 3000 m derating)
DisplayLED,HMI (Optional Accessories)
Self-consumption at stop < 10 W
Compliance
Grid support LVRT, active & reactive power control and power ramp rate control

BESS system main parts.

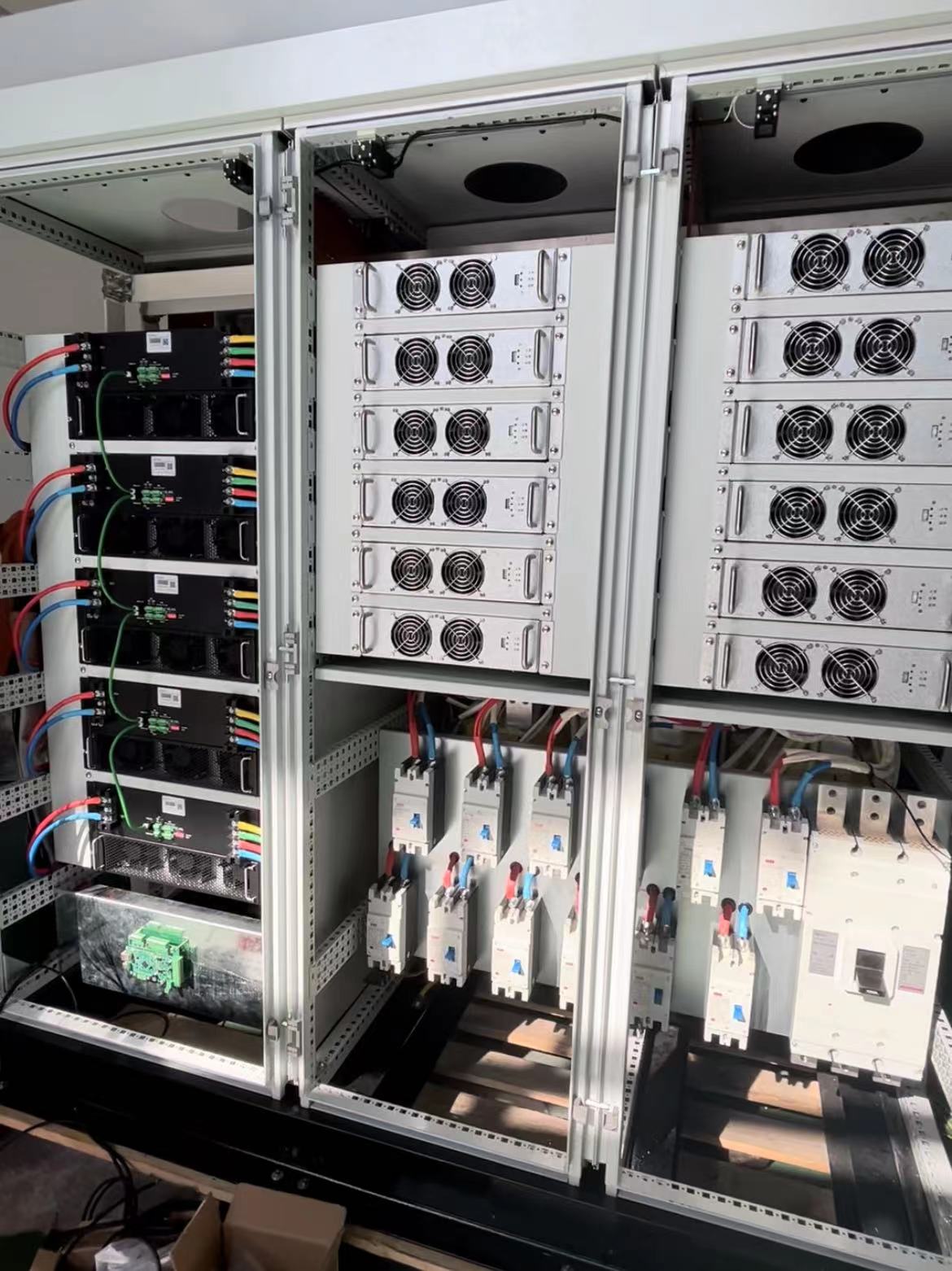

Use case:
500kW/1MWH Battery Storage System with 5piece 100kW PCS Connect and with 720kW DCDC module with 1MWH Battery capactiy.
Sino Soar Technology Co., Ltd. is a high-tech enterprise specializing in the research and development, manufacturing, sales, and service of energy storage system PCS modules and optical reserve all-in-one machines. The company is located in Bao'an District, Shenzhen. The core team of the company originates from Emerson and has a senior, professional, and efficient team composition. The company focuses on the research and manufacturing of energy storage inverter PCS modules and optical reserve all-in-one machines, providing customers with standard products and PCS system solutions. The company adheres to customer centricity, with professionalism and service as the core, and provides customers with trustworthy products and services.
