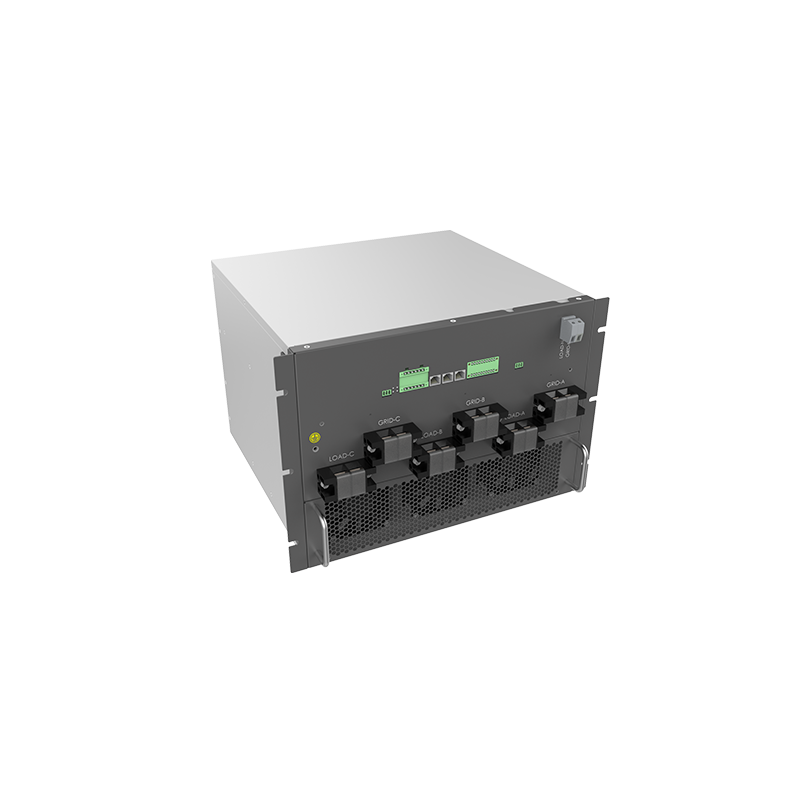

STS Static Transfer Switch 200kW
STS Static Transfer Switch 200kW

STS Static Transfer Switch 200kW

Product Details:
Place of Origin: China
Brand Name: SINO
Certification: CE
Model Number: SPSTS200
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: 4000$/piece
Packaging Details: Carton
Delivery Time: 35~45days
Payment Terms: TT
Supply Ability: 200pieces/month

Send Inquiry Chat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction


Detailed Product Description

A fast switching module mainly developed for medium to large energy storage microgrids, supporting seamless switching between and off the grid.

01
Internally integrated LocalEMS
02Seamless switching function
03Three phase bidirectional control


Type designation

STS200HC

Input/ Output  (AC)

Rated power

200KVA

Rated  voltage

230V/400VAC(-20%/15%)

Rated grid frequency

50 Hz/60HZ /(+/-5Hz )

Max. power

220KVA

Max. current

330A

General Data

Dimensions (W * H * D)

420*360*440

Weight

25KG

Degree of protection

IP5x

Operating  temperature range

-30 ℃ to 60 ℃

humidity range

0 % – 100 %

Cooling method

Temperature controlled forced air cooling

Max. operating altitude

4000 m(>3000m derating)

Communication

RS485*3 / modbusTCP / CAN/4G
DI:8   DO:8

Switch time (PCC)

< 10ms
