100kW 110kW 215kWH 230kWH Bidirectional AC DC /DC AC liquid cooled/water cooled converter inverter model for microgrid and energy battery system inverter part

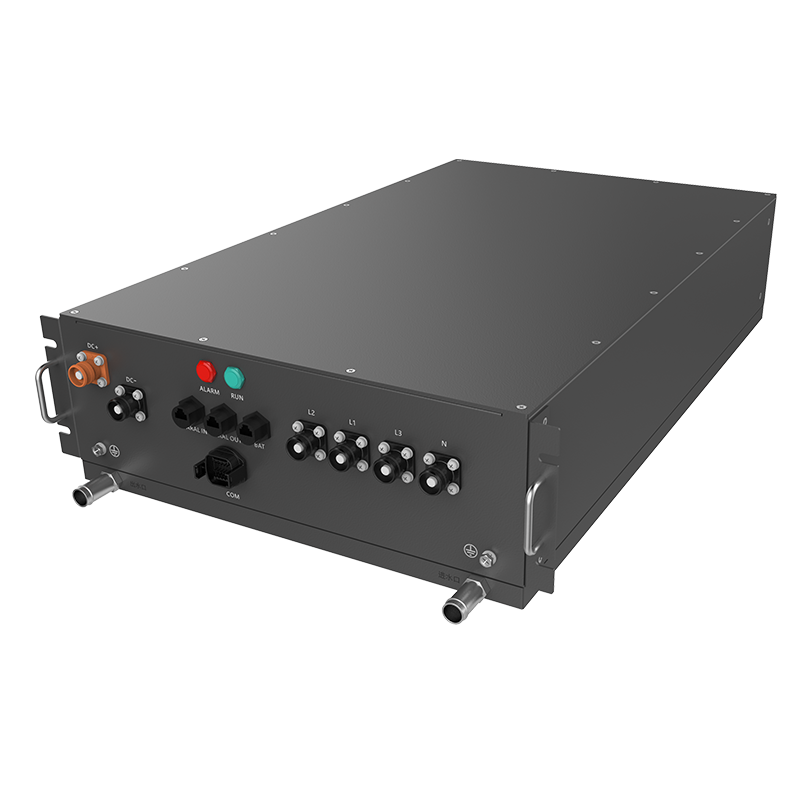

Large Image : 110kW 215kWH 230kWH Bidirectional AC DC /DC AC liquid cool converter model for microgrid and energy storage system

Product Details:
Place of Origin: China
Brand Name: SinoSoar
Certification: CE,EN50549
Model Number: SP110HS
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: 3500$/piece
Packaging Details: Carton
Delivery Time: 35~45days
Payment Terms: TT
Supply Ability: 1000 pieces/month

Send Inquiry Chat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction
Detailed Product Description

An efficient and highly protective energy storage converter mainly developed for medium to large energy storage microgrids, supports parallel operation of multiple machines, hybrid operation of oil engines, and parallel off grid mode.It can be used in a variety of grid-connected and off-grid application scenarios, such as emergency power backup, mobile energy storage, transformer capacity expansion in platform area, peak-load shifting, or dynamic capacity increase, etc. At the same time, it can rapidly expand capacity according to user requirements, and conveniently realize the parallel networking of multiple devices to form a small and medium-sized energy storage system. Can be used independently off-grid, with strong load applicability; the power grid has strong adaptability and excellent usability; Easy integration, single module and a cluster of conventional standard batteries on the market to form a standardized 0.5C energy storage system, to achieve fine management of batteries.


Type designation

SP110HS

DC side

Max. DC voltage

950 V

Min. DC voltage

600 V

DC voltage range for nominal power

600 ~900V

Max. DC current

180A

Max. DC power

112kW

AC side (Grid)

AC output power

110kVA

Max. AC current

160A

Nominal AC voltage (AC voltage range)

400 V / 230V (-20%~15%)

Nominal grid frequency / Grid frequency range

50Hz / 47Hz~52Hz ， 60Hz / 57Hz~62Hz

Harmonic (THD)

< 3 % (at nominal power)

Power factor at nominal power / Adjustable power factor

 – 1 ~ 1

AC side (micro-grid)

Nominal AC voltage

400 V / 230V (-5%~5%)

Harmonic (THD)

< 1 % (Resistance load)

Unbalanced three phase load

100%

Nominal frequency / Frequency range

50Hz / 45Hz~55Hz ， 60Hz / 55Hz~65Hz

AC power

110kW(MAX 150kW)

Efficiency

Max. efficiency

98.40%

Protection

Reverse polarity protection

Yes

Overvoltage protection AC

Type II

Grid monitoring / Ground fault monitoring

Yes / Yes

Insulation monitoring

Yes

Overheat protection

Yes

EMS interface

LED

2

COM

Modbus RTU*2(Monitor and BAT)

CAN

CAN*2 (Monitor and BAT)

DIDO

DO*2,DI*2

General Data

Dimensions (W*H*D)

470*170*770mm

Weight

60 kg

Degree of protection

 IP 65

Operating temperature

-30 ~ 60 ˚ C (> 45 ˚ C derating)

Relative humidity

0 ~100 %

Cooling

Liquid cooling

Max. operating altitude

 4000 m (> 3000 m derating)

Display

LED,HMI (Optional Accessories)

Self-consumption at stop

< 10 W

Compliance


Grid support

LVRT, active & reactive power control and power ramp rate control
