30kW 50kW 60kW 90kW 120kW PCS power converter bidirection inverter converter AC DC/DC DC converter D

Model:SP30HA/SP30HB                           RatePower:30KW
Voltage Range:DC400~850V                    Current Range:62A
Frequency:50HZ/60HZ                              Communicate:RS485, CAN
Max efficiency:98%                                    Certificate:IEC62109,IEC 62103,IEC 62477,EN 62477,IEC 62116, IEC 61727,IEC61000,G99,CIG 023,VDE4105

Grid Type:3P+N+PE                   OverLoad:150%
Contain:EMS(Energy Manager System)

High Light: 30kW  Ac  Dc Converter ;30kW DC AC Converter , battery power converter, AC  power converter ；bidirectional converter
Use scene:
battery storage system test equipment,microgrid bidirectional  converter,peak-load shifting, Diesel generator mix connect,battery system converter test parts

The 30KW bidirectional power energy storage AC DC converter and DC AC converter can be used in microgrids, supporting
multiple parallel connection and easily realizing energy storage systems from small to medium-sized microgrids and also
with good power conversion system price. It has a wide DC voltage range and includes an EMS (Energy manager system),
which can be easily installed and maintained. It can be used for multiple parallel connection, as well as multiple off grid
parallel connection. It is suitable for small industrial and commercial microgrid systems.

Features:

1. Wide voltage range DC 400~850V

2. Integrate EMS energy management system to facilitate the construction of small energy storage systems

3. IP65 protection level, suitable for any environments

4. Pure aluminum shell, acid resistant, alkali resistant, moisture resistant and other

5. 3P+N+PE, suitable for any load

6. It can be quickly switched by Static transform switcher

7. Adapt to multiple mainstream BMS protocols

8. Simple on-site debugging, remote monitoring can be achieved through WEB or APP

Technology Parameter

Use scene 1:

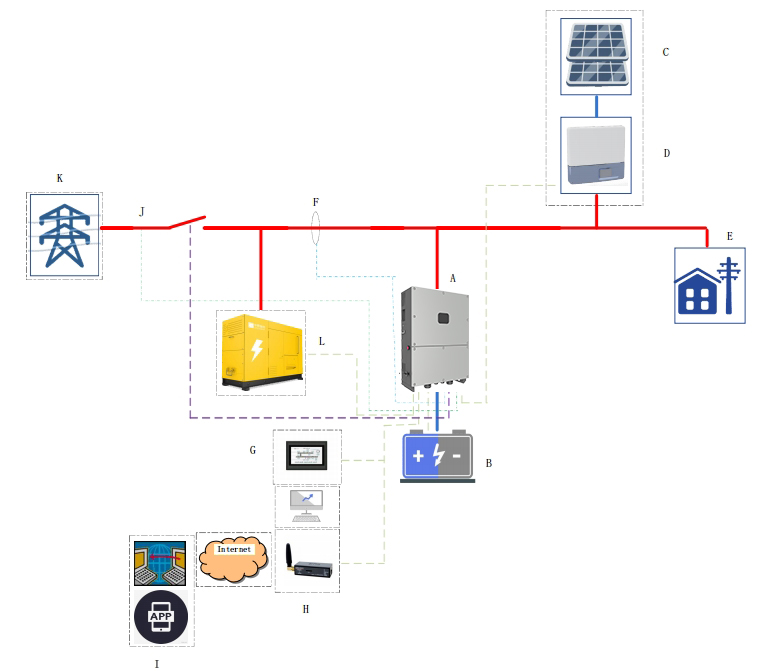

This is for diesel generator and pv mix connection.

Use scene 2:
Distributed energy storage is currently the most popular energy storage solution, with one cluster and one management of batteries, which can effectively improve battery life. The unique balanced SOC strategy of SinoSoar ensures simultaneous charging and discharging, with good balance between systems, avoiding overcharging and discharging of batteries

The core of a distributed energy storage cabinet is battery cluster management, consisting of a series of energy storage inverters and high energy density battery packs. It can be distributed in nearby distribution rooms and can be centrally controlled and deployed through communication lines.

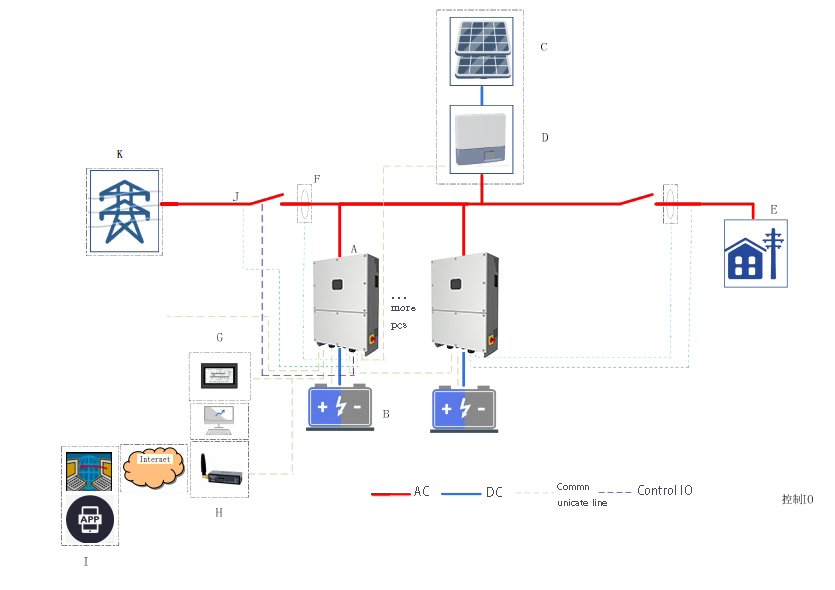

This scene for offgrid multiple connection.
Use scene 3:

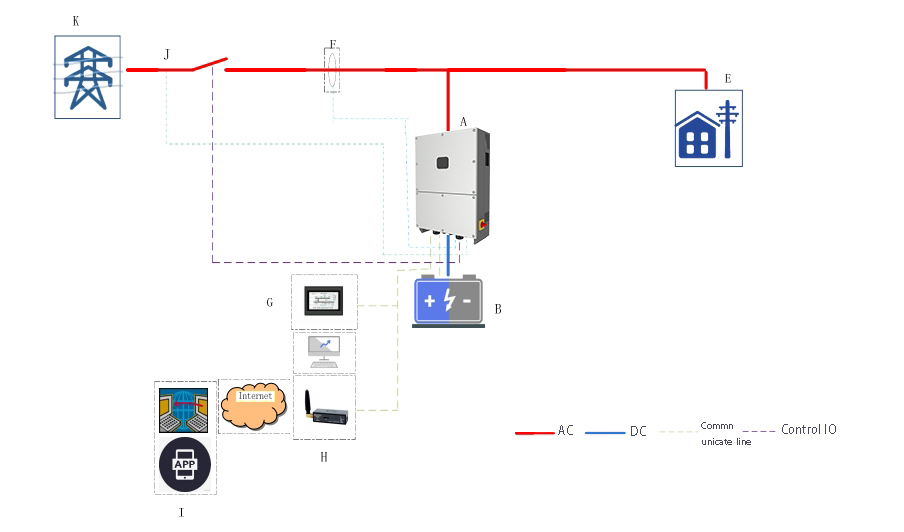

UPS scene mode

• Energy storage backup UPS usually cuts the peak and fills the valley, and supplies power to the equipment replacing the online UPS protection when the city power is abnormal.
• Reduces lead-acid battery usage in online UPS.
