100kW 200kW 300kW 400kW 500kW 600kWChina best Power conversion system manufacture

Bi-directional AC DC/DC AC Battery Inverter Power Conversion System with MPPT
Full capacity range  200/300/400/500kW single unit
Flexible configuration  Can be used alone or combined with other devices for different purpose
Expandable  Multiple in parallel to for MW level system
Touch screen  Convenient for parameter setting and viewing
Support work mode:
On Grid: The default factory setting of ATESS is: Zero-Export, Load First mode.
On Grid: Working Mode - Battery First mode
On Grid: Working Mode - Economy mode
On Grid: Working mode - Time schedule mode
On Grid: Working mode - EMS mode
Main feature:
  ~~Intelligent matching of charge and discharge strategie

It can be perfectly adapted to lead acid batteries, lithium batteries, LFP, NMC, fluid batteries, super capacitors and other types of batteries.

According to the judgment, the system can achieve different charging and discharging strategies for different types of batteries, with constant power,
constant voltage, constant current, etc

A variety of charging and discharging methods can effectively extend the service life of the battery.

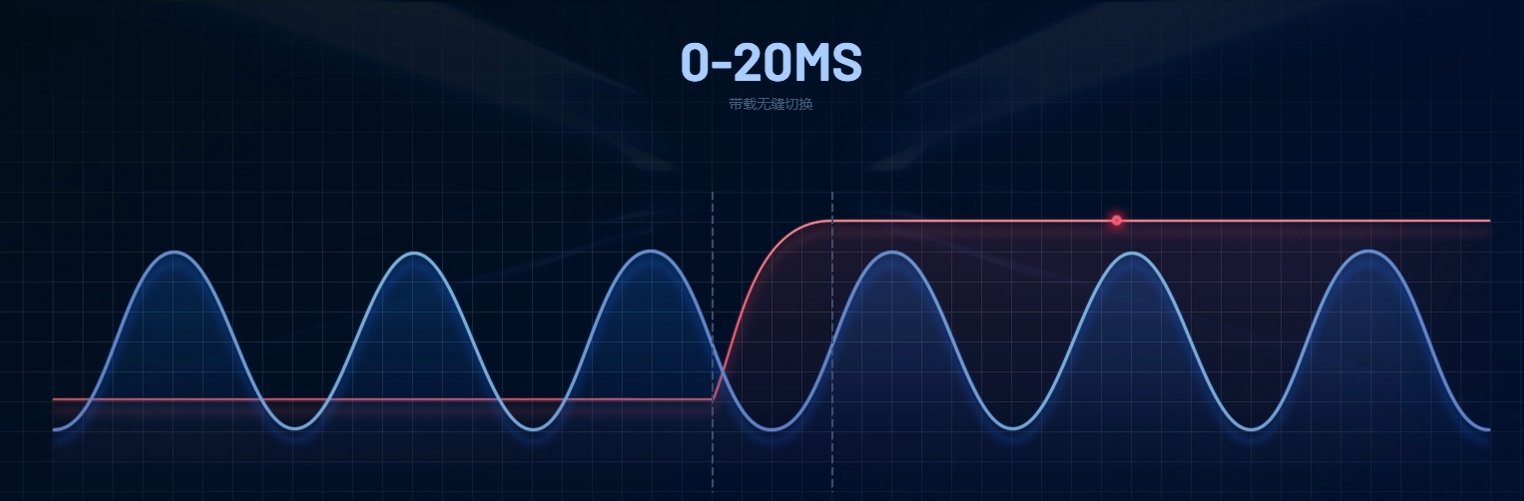

~~Realize seamless switching between connected and off-grid

In conjunction with STS, seamless off-network switching can be achieved. In the event of power failure, rainstorm, line failure and other emergencies,
it can achieve seamless switching with load within 0-20ms.

Ensure the continuity of electricity consumption and avoid economic losses caused by power outages

~~Designed for power grid side generation side Applied design

For frequency modulation applications, charge and discharge speed switching within 10ms should be achieved

For the power grid voltage transient analysis, support high and low voltage crossing function, help the stable operation of the system.
~~Special design of multi branch control technology

SinoSoar's 500K energy storage converter is capable of feeding multiple branch inputs directly into the converter and battery.It can use 1/4/8 multi-branch access to the energy storage system, which can effectively reduce the series and parallel connection of energy storage batteries and reduce electricity.The risk of pool loss can make greater use of cascade batteries and reduce construction costs.

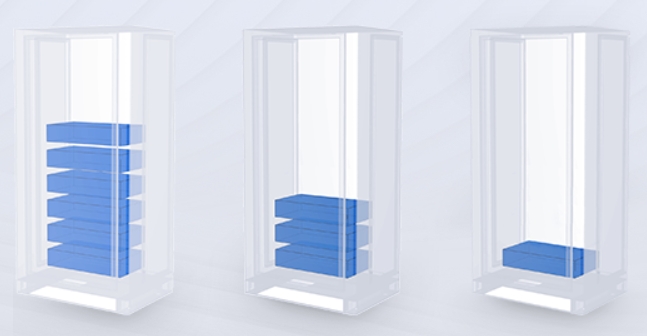

~~Modular design makes operation and maintenance simpler
The product adopts a modular design concept, and each module can operate independently without interfering with each other. It can be centrally managed and controlled, reducing labor costs. At the same time, the product has the function of multiple parallel machines, which can be expanded according to the scene and space, power and energy needs, and can be easily integrated into different usage scenarios.

Use Scene:
Large microgrid off-grid solution

• High power (above MW level) independent  microgrid, AC bus topology to reduce the  input source coupling, improve reliability;
• The system operates under off-grid  mode, with energy storage systems or  diesel generators providing voltage and  frequency support for the entire microgrid;
• EMS analyzes and predicts PV,wind power  and load to realize safe, reliableand  economic operation of microgrid system;









PV charging station solution
The AC bus of integrated PV & storage and charging power station is a common solution at present. The MEGA  series inverters can be widely used in the charging station for system power expansion and multi-function power complementary scenarios.
• Integrated container solution of PV, energy  storage and battery can be realized；
• Large access power range and flexible design；
• Can be used for power supply in areas without  electricity, integrated application of
PV& storage  and charging, electricity trade in industrial parks,  large charging stations and other micro-grid  applications；
• ESS peak shaving, reduce power grid distribution  capacity, solve the problem of power distribution  expansion；








Sino Soar Technology Co., Ltd. is a high-tech enterprise specializing in the research and development, manufacturing, sales, and service of energy storage system PCS modules and optical reserve all-in-one machines. The company is located in Bao'an District, Shenzhen. The core team of the company originates from Emerson and has a senior, professional, and efficient team composition. The company focuses on the research and manufacturing of energy storage inverter PCS modules and optical reserve all-in-one machines, providing customers with standard products and PCS system solutions. The company adheres to customer centricity, with professionalism and service as the core, and provides customers with trustworthy products and services.
