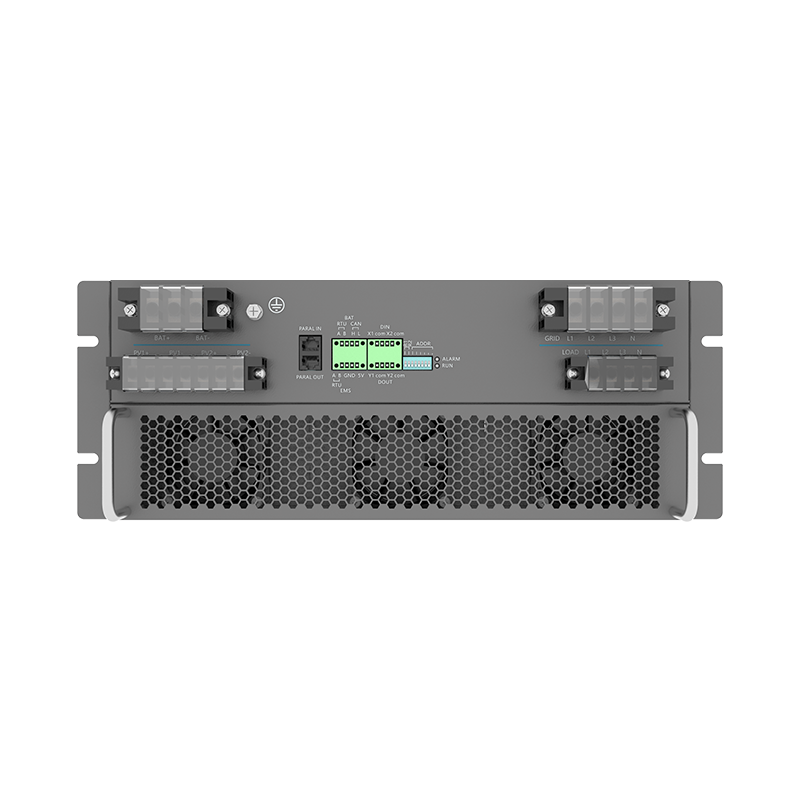

25kW 30kW 36kW 50kW 60kW 90kW 120kW 3 phase 1phase hybrid solar inverter bidirectional inverter AC
25kW 30kW 36kW 50kW 60kW 90kW 120kW 3 phase 1phase hybrid solar inverter bidirectional inverter AC

25kW 30kW 36kW 50kW 60kW 90kW 120kW 3 phase 1phase hybrid solar inverter bidirectional inverter AC

Product Details:
Place of Origin: China
Brand Name: SINOSoar
Certification: CE
Model Number: SP60BH
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: 3500$~4500 USD
Packaging Details: Carton
Delivery Time: 35~45days
Payment Terms: TT
Supply Ability: 400 pieces/month

Send Inquiry Chat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction
Detailed Product Description

30kW microgrid industry commerical hybrid solar inverter hybrid solar inverter photovoltaic energy storage machine  commercial solar inverter with MPPT EMS STS back up power inverter.This can be use for 20kW,30kW,60kW(2pieces 30kW parallel connection)to match the requirement.

Supports two PV MPPT modules.

Application scenarios: small industrial and commercial, small micro-grid, farm, workshop, etc
It is an efficient and highly reliable energy storage inverter mainly developed for small and
medium-sized energy storage microgrids, with air duct isolation and EMS included.

Off-grid switching device, support multiple off-grid parallel operation, support hybrid operation of the oil machine, support off-grid switching mode,

Mainly ability:

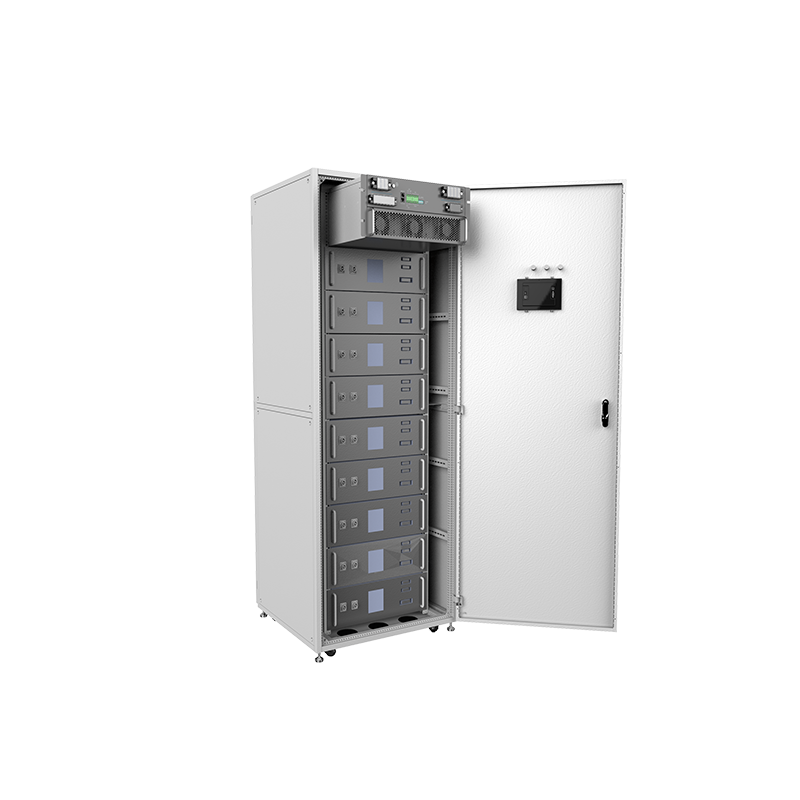

Industrial and commercial energy storage + emergency backup   Mobile energy storage
PV energy storage diesel power generation small micro-grid  Photovoltaic energy storage charging statio


Detail Parameters

Type designationSP30HG2
DC side
Max. DC voltage850 V
Min. DC voltage200 V
DC voltage range for nominal power350 ~800V
Max. DC current100A
Max. DC power35kW
AC side (Grid)
AC output power33kVA @ 45°C
Max. AC current50A
Nominal AC voltage (AC voltage range)400 V / 230V (-20%~15%)
Nominal grid frequency / Grid frequency range50Hz / 45Hz~52Hz ， 60Hz / 55Hz~62Hz
Harmonic (THD)< 3 % (at nominal power)
Power factor at nominal power / Adjustable power
factor		– 1 ~ 1
AC side (micro-grid)
Nominal AC voltage400 V / 230V (-5%~5%)
Harmonic (THD)< 2 % (Resistance load)
Unbalanced three phase load100%
Nominal frequency / Frequency range50Hz / 45Hz~55Hz ， 60Hz / 55Hz~65Hz
Max. AC power33kVA @ 45°C
INPUT(PV)Optional Accessories
PV voltage range


150-850V
MPPT voltage range 350-800V
Number of MPPT inputs 2
MAX PV input current/MAX Power 32A+32A/19.2kW+19.2kW
Efficiency
Max. efficiency97.80%
Protection
Reverse polarity protectionYes
Overvoltage protection AC Type II
Grid monitoring / Ground fault monitoringYes / Yes
Insulation monitoringYes
Overheat protectionYes
EMS interface
LED2
COMModbus RTU*2(Monitor and Cloud)
CANCAN*2 (Monitor and BAT)
DIDODO*2,DI*2
General Data
Dimensions (W*H*D)550*178*440mm
Weight25 kg
Degree of protectionIP 20
Operating temperature-30 ~ 60 ˚ C (> 45 ˚ C derating)
Relative humidity5 ~95%
CoolingTemperature controlled forced air cooling
Max. operating altitude4000 m (> 3000 m derating)
DisplayLED,HMI (Optional Accessories)
Self-consumption at stop< 10 W
ComplianceEN 50549 IEC62477 IEC6100 IEC62109
Grid supportLVRT, active & reactive power control and power ramp rate control

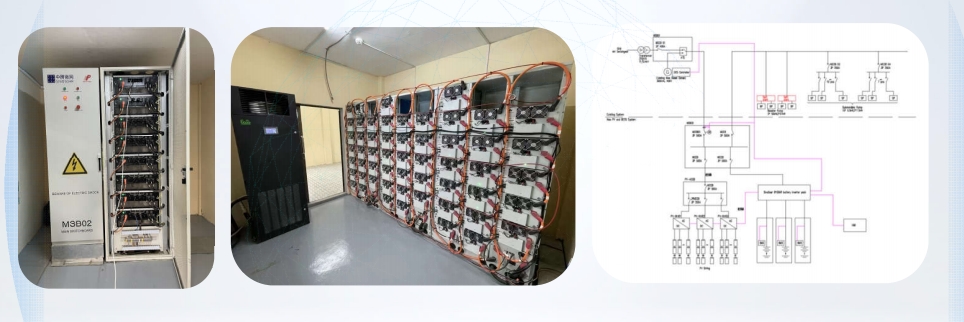

Project 1:
Myanmar Yangon photovoltaic storage power station pump power supply microgrid system

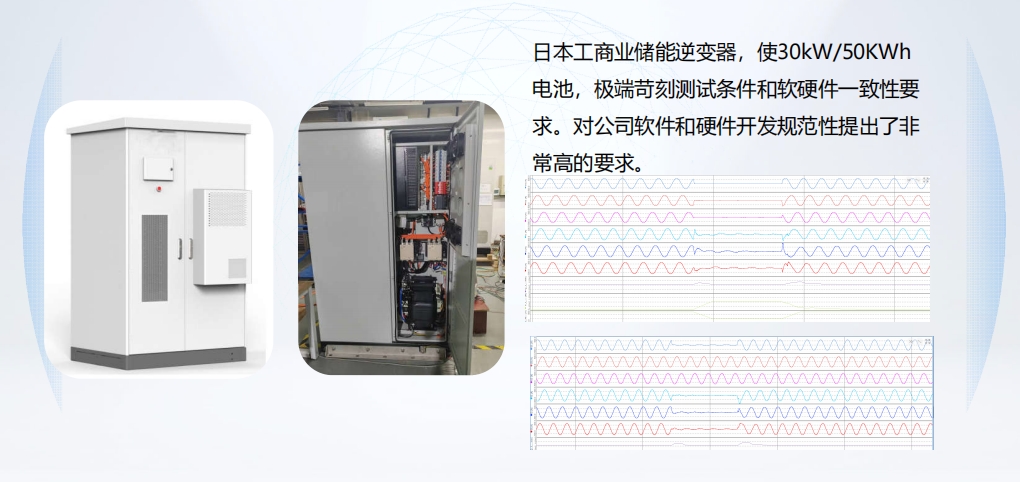

Project 2:

Japanese industrial and commercial energy storage inverters make 30kW/50kWh

Batteries, extremely demanding test conditions and software and hardware consistency

Please. Put forward the non-regulation of the company's software and hardware development

Often high requirements.
