50kW 100kW 200kW 300kW 400kW 500kW 600kW Power Conversion System Micro Grid Energy Storage System En
50kW 100kW 200kW 300kW 400kW 500kW 600kW Power Conversion System Micro Grid Energy Storage System En

50kW 100kW 200kW 300kW 400kW 500kW 600kW Power Conversion System Micro Grid Energy Storage System En

Product Details:
Place of Origin: China
Brand Name: Sino Energy
Certification: CE
Model Number: SPA100HZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: inquery
Packaging Details: Carton
Delivery Time: 35~45days
Payment Terms: TT
Supply Ability: 10 pieces/month

Send Inquiry Chat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction
Detail Info
100kW power conversion system specifications:
Type designationSPA100HZ
Input / Output (AC)
Rated AC output power100KW
Rated AC output current (230VAC)300A
Overload current110（10min）150%（1s）
Rated AC voltage220 / 230 / 240 V
AC voltage range230V/400VAC(-20%/15%)
Rated grid frequency50 Hz/60HZ /(+/-5Hz )
Harmonic (THD)<3 %  (of rated power)
Max. efficiency / European efficiency98.5 % / 97.8 %
Battery Data
Battery voltage650V-850V（350V-850V selectable)
Max charge / discharge current360A
General Data
Dimensions (W * H * D)
Weight
Mounting methodFloor installation
Topology (Solar / Battery)Transformerless
Degree of protectionIP54
Operating ambient temperature range-30 ℃ to 60 ℃
Allowable relative humidity range0 % – 100 %
Cooling methodFAN
Max. operating altitude4000 m(>3000m derating)
CommunicationRS485 / Ethernet / WLAN  /Cloud(EMS)
PCC unitSCR
DG YES(TYPEA/TYPB)   2 units
Grid  complianceIEC/EN 62109      IEC/EN 61000
IEC/EN 62477     IEC/EN 61727
Backup Data (off-grid mode)
Rated voltage 230 V(±2 %)
Frequency range50 Hz / 60 Hz (±0.2 %)
Total output THDv for linear load< 2 %
Switch time to emergency mode< 10 ms
Rated output power200KW
Rated power from grid400kva

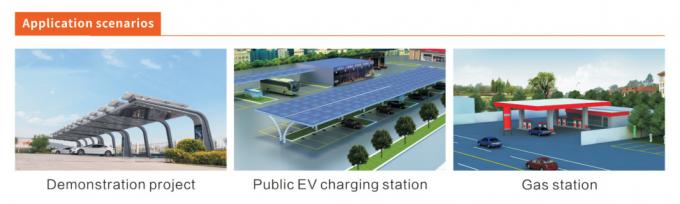

Use Scene:
