Product Details:
Place of Origin: China
Brand Name: SINO
Certification: CE
Model Number: SP30HBG2
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: 3500$~4500 USD
Packaging Details: Carton
Delivery Time: 35~45days
Payment Terms: TT
Supply Ability: 400 pieces/month

Send Inquiry Chat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

SP30HBG2 microgrid industry commerical hybrid inverter

It is an efficient and highly reliable energy storage inverter mainly developed for small and medium-sized energy storage microgrids, with air duct isolation and EMS included.

Off-grid switching device, support multiple off-grid parallel operation, support hybrid operation of the oil machine, support off-grid switching mode,

Supports two PV MPPT modules.
Application scenarios: small industrial and commercial, small micro-grid, farm, workshop, etc
Mainly ability:
Industrial and commercial energy storage + emergency backup   Mobile energy storage
PV energy storage diesel power generation small micro-grid  Photovoltaic energy storage charging station

Detail Parameters

Type designationSP30HG2
DC side
Max. DC voltage850 V
Min. DC voltage300 V
DC voltage range for nominal power350 ~800V
Max. DC current100A
Max. DC power35kW
AC side (Grid)
AC output power33kVA @ 45°C
Max. AC current50A
Nominal AC voltage (AC voltage range)400 V / 230V (-20%~15%)
Nominal grid frequency / Grid frequency range50Hz / 45Hz~52Hz ， 60Hz / 55Hz~62Hz
Harmonic (THD)< 3 % (at nominal power)
Power factor at nominal power / Adjustable power
factor		– 1 ~ 1
AC side (micro-grid)
Nominal AC voltage400 V / 230V (-5%~5%)
Harmonic (THD)< 2 % (Resistance load)
Unbalanced three phase load100%
Nominal frequency / Frequency range50Hz / 45Hz~55Hz ， 60Hz / 55Hz~65Hz
Max. AC power33kVA @ 45°C
INPUT(PV)Optional Accessories
PV voltage range


150-850V
MPPT voltage range 350-800V
Number of MPPT inputs 2
MAX PV input current/MAX Power 32A+32A/19.2kW+19.2kW
Efficiency
Max. efficiency97.80%
Protection
Reverse polarity protectionYes
Overvoltage protection AC Type II
Grid monitoring / Ground fault monitoringYes / Yes
Insulation monitoringYes
Overheat protectionYes
EMS interface
LED2
COMModbus RTU*2(Monitor and Cloud)
CANCAN*2 (Monitor and BAT)
DIDODO*2,DI*2
General Data
Dimensions (W*H*D)550*178*440mm
Weight25 kg
Degree of protectionIP 20
Operating temperature-30 ~ 60 ˚ C (> 45 ˚ C derating)
Relative humidity5 ~95%
CoolingTemperature controlled forced air cooling
Max. operating altitude4000 m (> 3000 m derating)
DisplayLED,HMI (Optional Accessories)
Self-consumption at stop< 10 W
ComplianceEN 50549 IEC62477 IEC6100 IEC62109
Grid supportLVRT, active & reactive power control and power ramp rate control

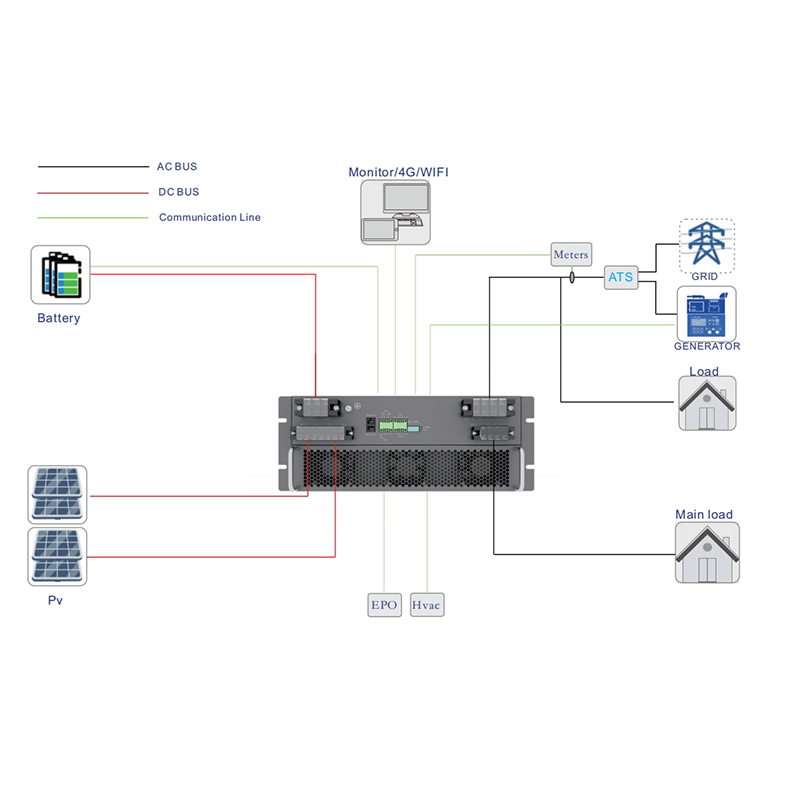

Use scene1:

Use scene2
Off-grid multi-machine parallelUse scene:
Use scene 2:

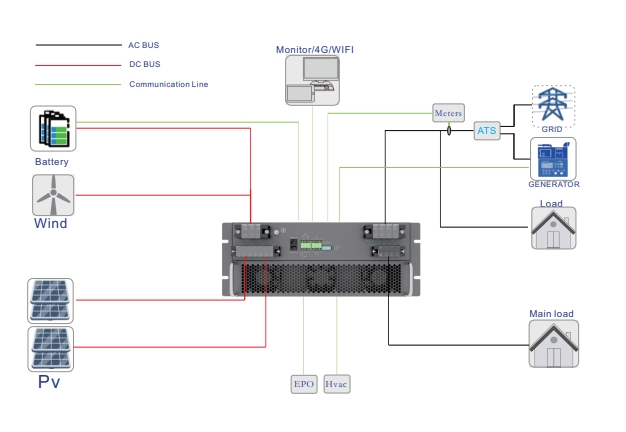

Wind, photovoltaic, diesel power generation .For small microgrid.Microgrid scenarios such as islands, fishing farms, aquaculture, farms, construction, mining, etc

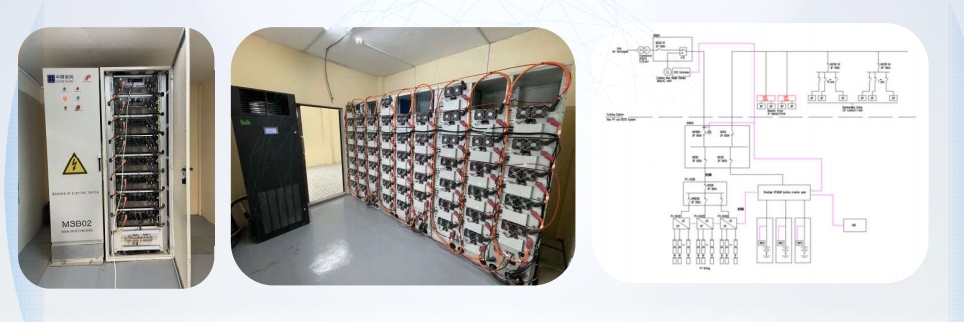

Case1:Volt diesel energy storage mains micro-grid system in Yangon, Myanmar缅甸马尼拉项目.png

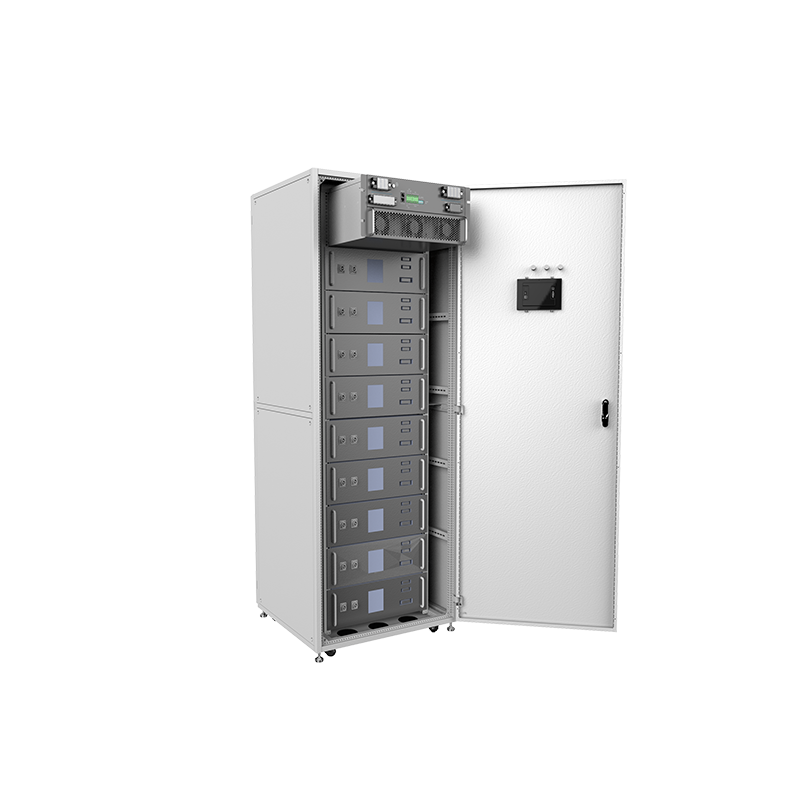

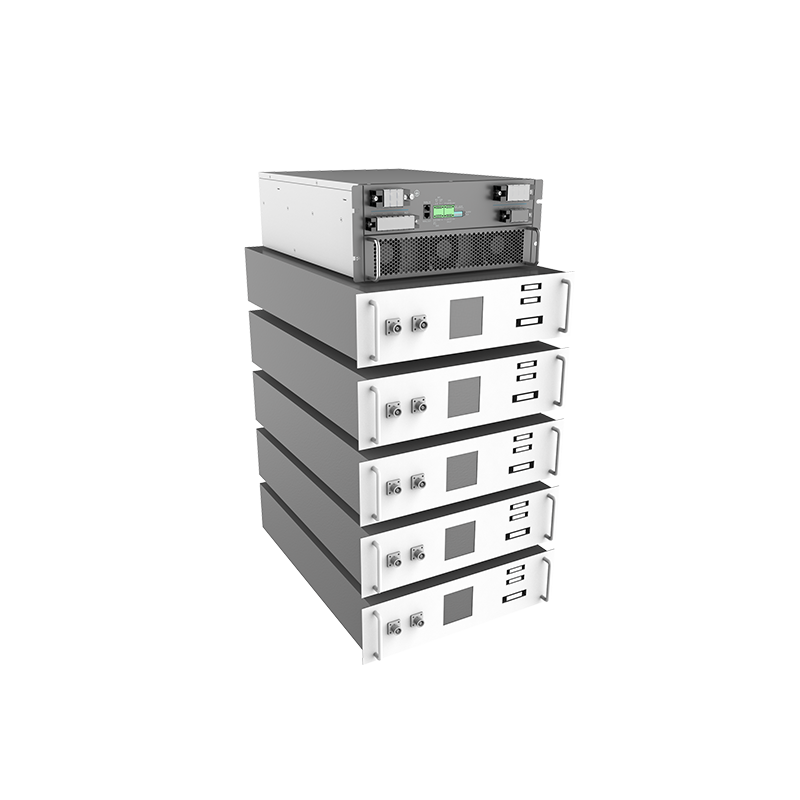

Case2:30kW 60kWH 72kWH 80kWH battery system with 1piece 30kW hybrid inverter and battery.
