Introduction to Battery Cells and Quality Factors

Batteries, as the core components of modern energy systems, heavily depend on the design, manufacturing processes, and coordinated operation of the cells for performance and reliability. This article analyzes the basic concept of battery cells, their quality sources, and their operation mechanisms in photovoltaic inverter systems.

1. Battery Cell: The Core of Energy Storage Units

Definition and Composition
A battery cell is the smallest energy storage unit of a battery. It consists of a positive electrode (e.g., lithium cobalt oxide, lithium iron phosphate), a negative electrode (e.g., graphite, silicon-based materials), an electrolyte, a separator, and a casing. Its core function is to achieve the conversion between chemical energy and electrical energy through redox reactions.

Types of Battery Cells

• By Chemical System:
  • Lithium-ion batteries (high energy density, long lifespan)
  • Nickel-metal hydride batteries (environmentally friendly, high cycle life)
  • Lead-acid batteries (low cost, mature technology)
• By Packaging Form:

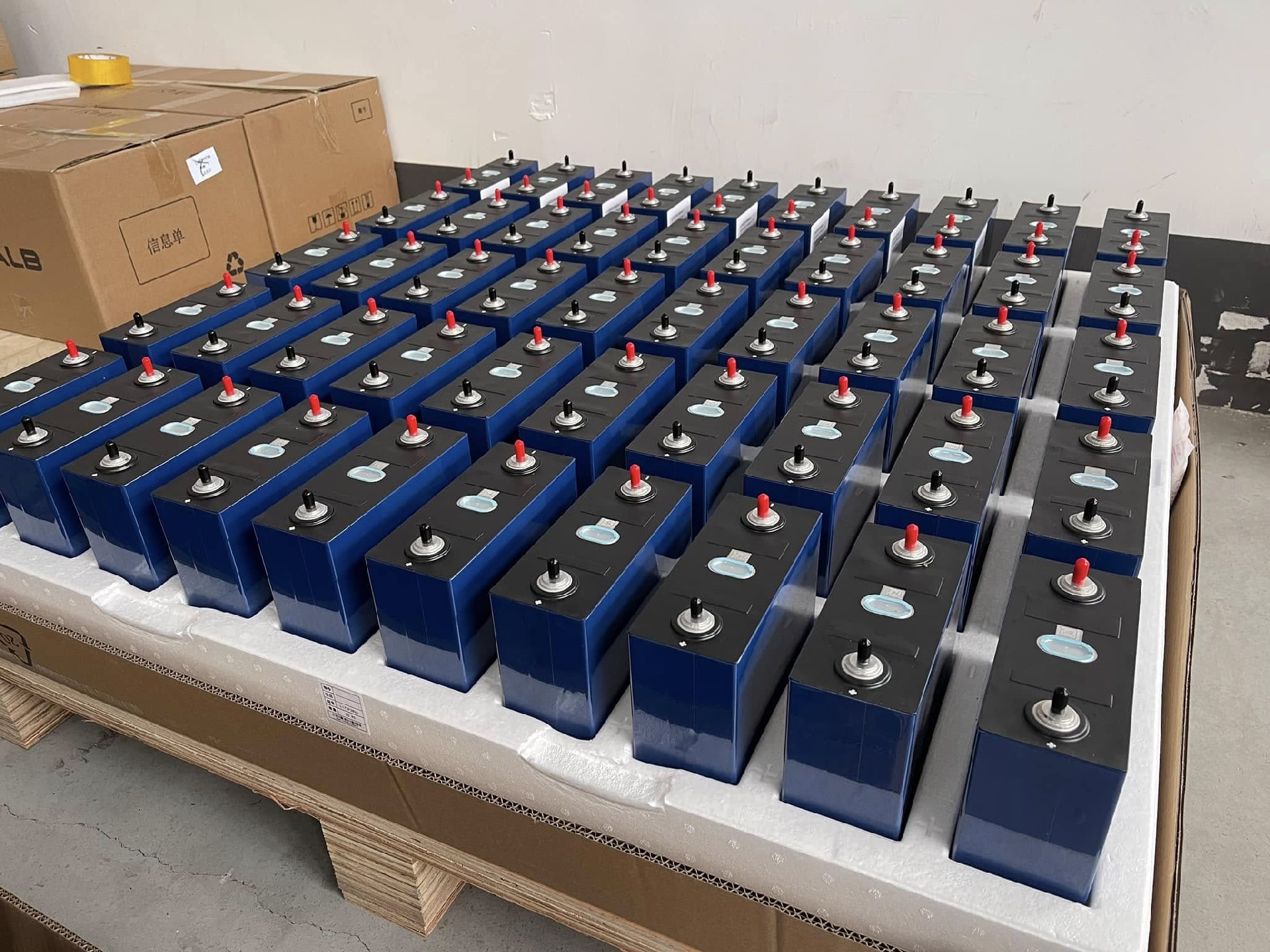

  • Aluminum case cells (commonly used in mobile phones)
  • Pouch cells (light, high energy density)

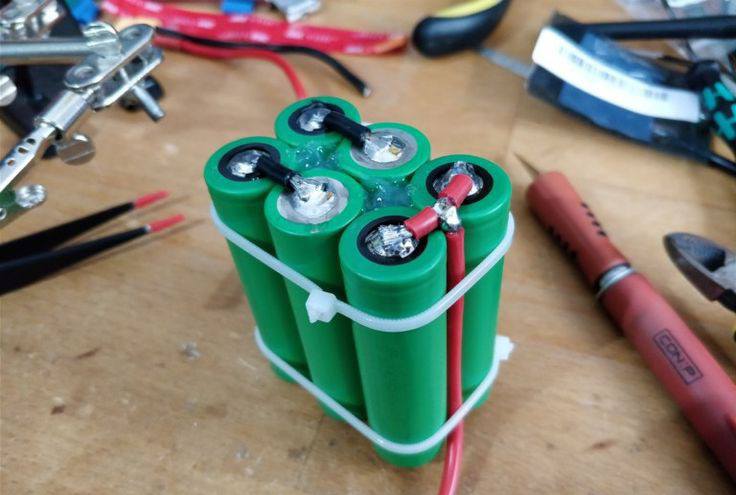

  • Cylindrical cells (e.g., Tesla 4680 cells)


  •


Operating Principle
During discharge, the positive electrode material releases lithium ions, which migrate through the electrolyte to the negative electrode and combine with electrons. During charging, the external power source drives the ions back to the positive electrode, completing the energy storage. This process requires a separator to isolate the positive and negative electrodes to prevent short circuits.

2. Core Sources of Battery Quality

Raw Material Quality

• Positive and Negative Electrode Materials: The purity and crystal structure directly affect energy density and cycle life. For instance, the impurity content of lithium cobalt oxide must be below the ppm level.
• Electrolyte and Separator: The ion conductivity of the electrolyte and the thermal stability of the separator determine the battery's safety and efficiency.

Manufacturing Process Control

• Coating and Winding: Uniformity of the coating on the electrodes and control of winding tension affect internal resistance and capacity consistency.
• Electrolyte Injection and Sealing: The amount of electrolyte injected must be precise, and sealing processes (e.g., laser welding) must ensure tightness to prevent leakage.

Testing and Safety Design

• Performance Testing: Parameters like capacity, internal resistance, and cycle life must be validated through standardized tests (e.g., 500 charge-discharge cycles to verify degradation rate).
• Safety Protection: Overcharge/overdischarge protection circuits and thermal management systems (e.g., liquid cooling designs) can mitigate the risk of thermal runaway.

Intelligent Management
High-end batteries integrate Battery Management Systems (BMS), which monitor cell status in real-time and balance charge/discharge to extend the battery life (e.g., Desay Battery’s intelligent cell technology).

3. Battery and Photovoltaic Inverter System Collaboration

Photovoltaic Energy Storage System Architecture
Photovoltaic panels convert solar energy into DC power, which is stored in energy storage batteries (e.g., lithium iron phosphate battery packs) and then converted into AC power by an inverter for load or grid use.

Core Role of the Battery in the System

• Energy Buffering: Store excess energy generated by photovoltaic power during the day for use at night or during cloudy periods, enhancing energy utilization.
• Voltage Stabilization: Use a step-up converter (e.g., from 12V to 220V) to match the inverter's input requirements and ensure stable energy output.

Inverter Key Technologies

• Five-Level Inverter Topology: Uses multi-stage switching circuits (e.g., full-bridge structure) to convert DC into sinusoidal AC, reducing harmonic distortion.
• MPPT (Maximum Power Point Tracking): Optimizes the output power from photovoltaic panels to improve system efficiency (e.g., dynamically adjusting voltage/current ratios).

System Integration Challenges

• Compatibility Requirements: The battery pack voltage must match the inverter's input range, e.g., a 48V battery pack paired with a wide-voltage inverter.
• Thermal Management: High-power charge/discharge requires liquid or air cooling systems to prevent battery temperature rise from affecting inverter efficiency.

4. Future Development Trends

• Material Innovation: Solid-state electrolytes (e.g., oxide-based solid-state cells) can enhance safety and energy density.
• De-modularized Design: CTP (Cell to Pack) technology reduces structural component proportions and improves space utilization (e.g., BYD’s blade battery).
• Integrated Photovoltaic Storage: AI algorithms combine photovoltaic panels, batteries, and inverters to achieve intelligent microgrid management.

Conclusion

The quality of batteries is determined by the comprehensive control of materials, manufacturing processes, and safety designs. Their efficient operation in photovoltaic systems relies on the deep collaboration between energy storage technology and inverter conversion. In the future, with breakthroughs in solid-state batteries and intelligent BMS technologies, batteries will play an increasingly pivotal role in the renewable energy sector.
